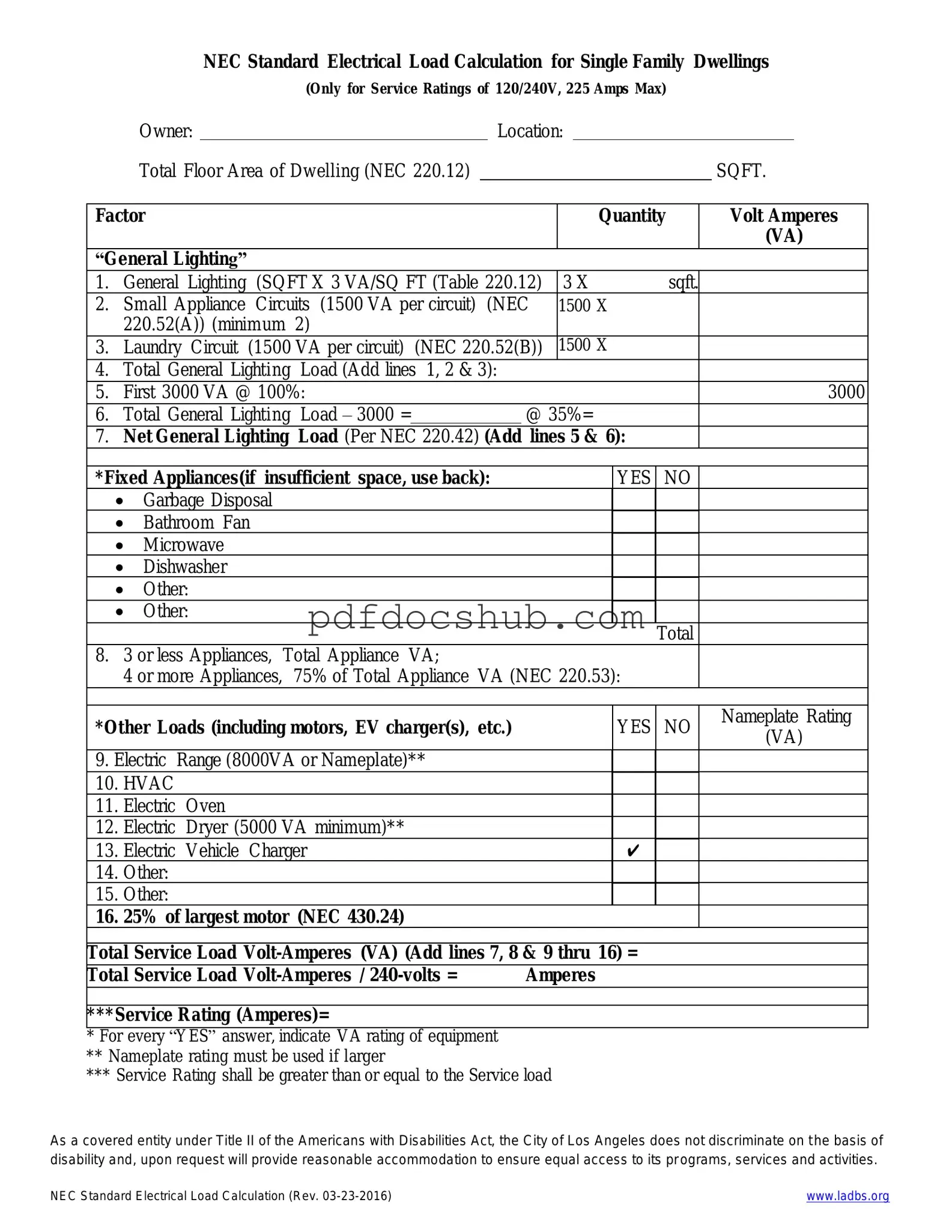

NEC Standard Electrical Load Calculation for Single Family Dwellings
(Only for Service Ratings of 120/240V, 225 Amps Max)
Owner:
Location:
Total Floor Area of Dwelling (NEC 220.12)
SQFT.
Factor
Quantity
Volt Amperes
(VA)
“General Lighting”
1.
General Lighting (SQFT X 3 VA/SQ FT (Table 220.12)
3 X
sqft.
2.
Small Appliance Circuits (1500 VA per circuit)
(NEC
1500 X
220.52(A)) (minimum 2)
3.
Laundry Circuit (1500 VA per circuit) (NEC 220.52(B))
4.
Total General Lighting Load (Add lines 1, 2 & 3):
5.
First 3000 VA @ 100%:
3000
6.
Total General Lighting Load – 3000 =
@ 35%=
7.
Net General Lighting Load (Per NEC 220.42) (Add lines 5 & 6):
*Fixed Appliances(if insufficient space, use back):
YES
NO
Garbage Disposal
Bathroom Fan
Microwave
Dishwasher
Other:
Total
8.
3 or less Appliances,
Total Appliance VA;
4 or more Appliances,
75% of Total Appliance VA (NEC 220.53):
*Other Loads (including motors, EV charger(s), etc.)
Nameplate Rating
9. Electric
Range (8000VA or Nameplate)**
10. HVAC
11.
Electric
Oven
12.
Dryer (5000 VA minimum)**
13.
Vehicle Charger
✔
14.
15.
16.
25% of largest motor (NEC 430.24)
Total Service Load Volt-Amperes (VA) (Add lines 7, 8 & 9 thru 16) =
Total Service Load Volt-Amperes / 240-volts =
Amperes
***Service Rating (Amperes)=
*For every “YES” answer, indicate VA rating of equipment
**Nameplate rating must be used if larger
***Service Rating shall be greater than or equal to the Service load
As a covered entity under Title II of the Americans with Disabilities Act, the City of Los Angeles does not discriminate on t he basis of disability and, upon request will provide reasonable accommodation to ensure equal access to its programs, services and activities.
NEC Standard Electrical Load Calculation (Rev. 03-23-2016)
www.ladbs.org
